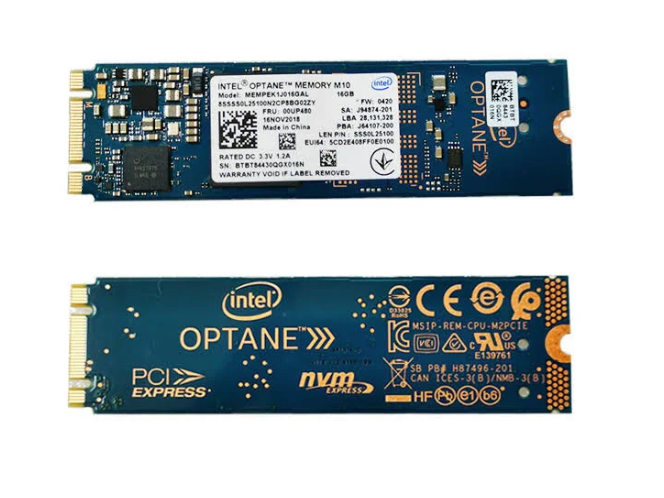

Intel Optane 16GB M10 M.2 PCIe

Not Your Traditional Memory

Close the gap between traditional memory and storage with Intel Optane memory, a standalone memory solution like no other. Streamline your computing experience by combining storage capacity and intelligent system acceleration. You get speed and capacity—all at a bargain price.

A smart, adaptable system accelerator that delivers faster, smoother, and amazingly responsive computing experience.

Tech Specs

Capacity

16 GB

Interface

PCIe 3.0 x2, NVMe

Form Factor

M.2 22 x 80mm

Performance Specifications

Sequential Bandwidth - 100% Read (up to) - 900 MB/s

Sequential Bandwidth - 100% Write (up to) - 150 MB/s

Random Read (8GB Span) (up to) - 190000 IOPS (4K Blocks)

Random Write (8GB Span) (up to) - 35000 IOPS (4K Blocks)

Random Read (100% Span) - 190000 IOPS (4K Blocks)

Random Write (100% Span) - 35000 IOPS (4K Blocks)

Power - Active  -2W

Power - Idle - L1.2 : 8mW

Reliability

Vibration - Operating  - 2.17 GRMS (5-700 Hz)

Vibration - Non-Operating - 3.13 GRMS (5-800 Hz)

Shock (Operating and Non-Operating) - 1000 G/0.5msec

Operating Temperature Range - 0°C to 85°C

Operating Temperature (Maximum) - 85 °C

Operating Temperature (Minimum) - 0 °C

Endurance Rating (Lifetime Writes)  - 365 TBW

Mean Time Between Failures (MTBF)  - 1.6 Million Hrs

Uncorrectable Bit Error Rate (UBER)  - < 1 sector per 10^15 bits read
