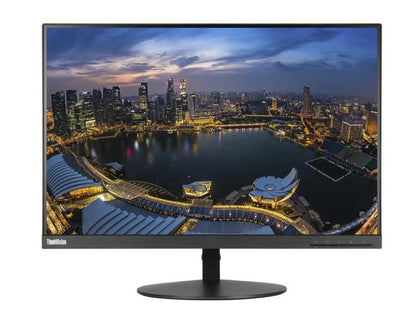

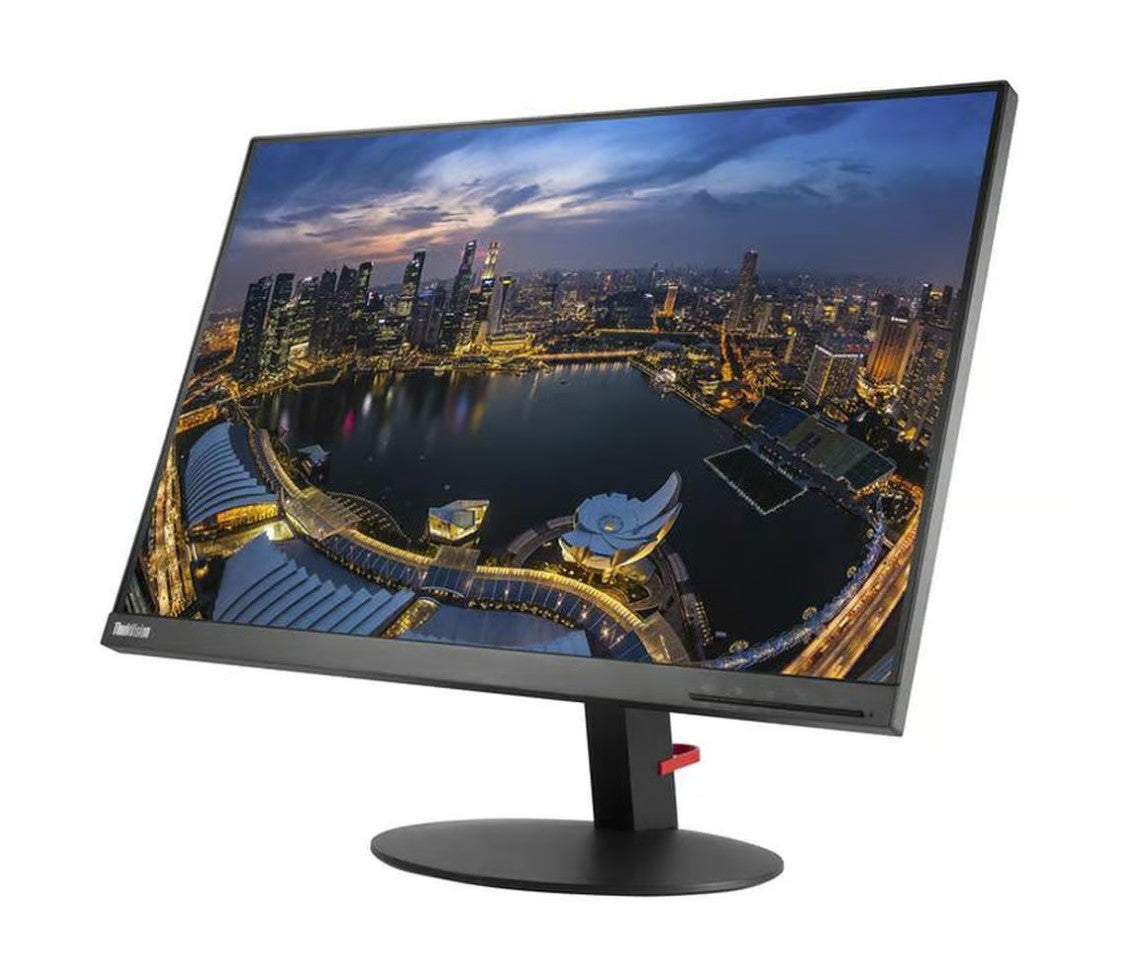

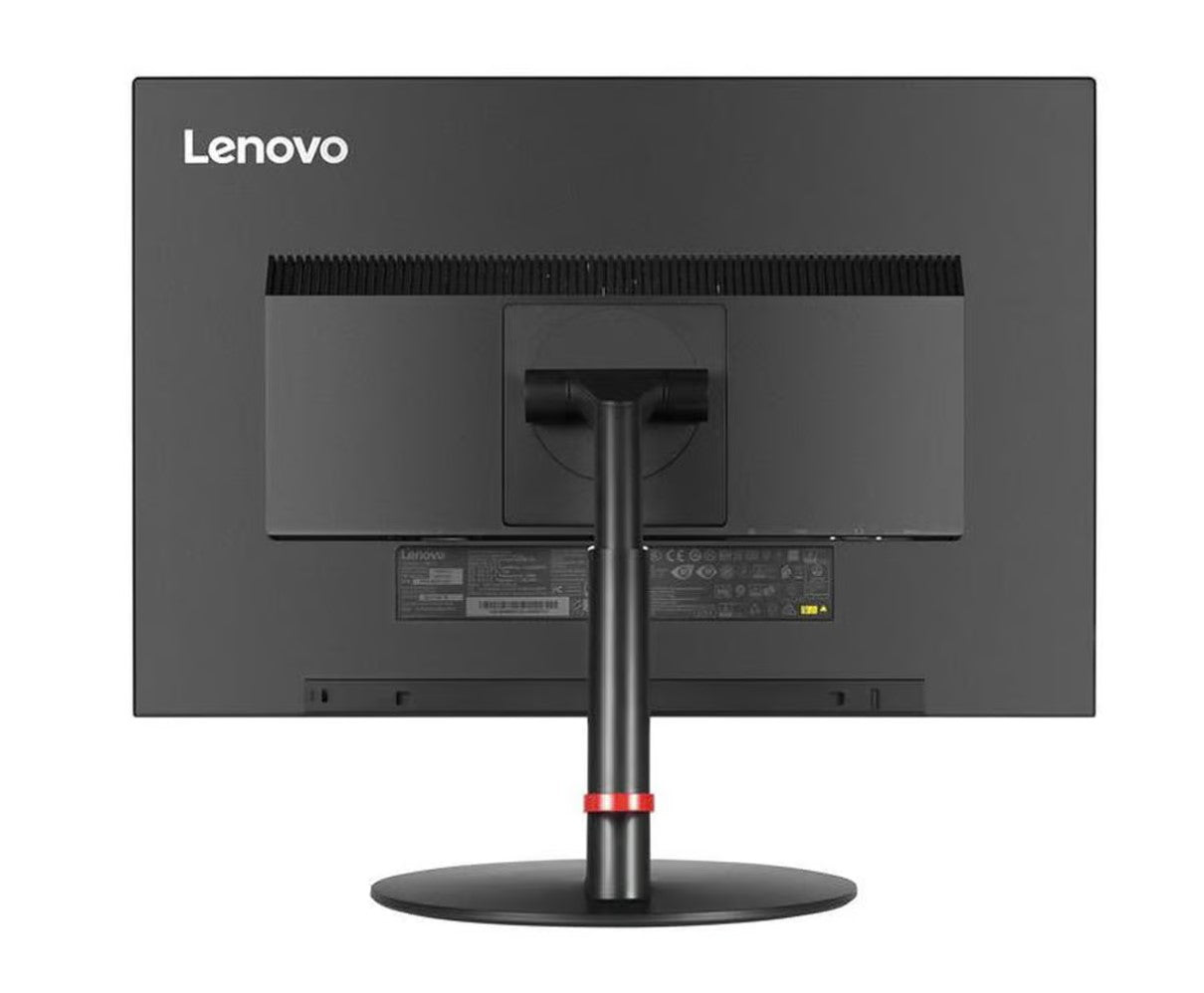

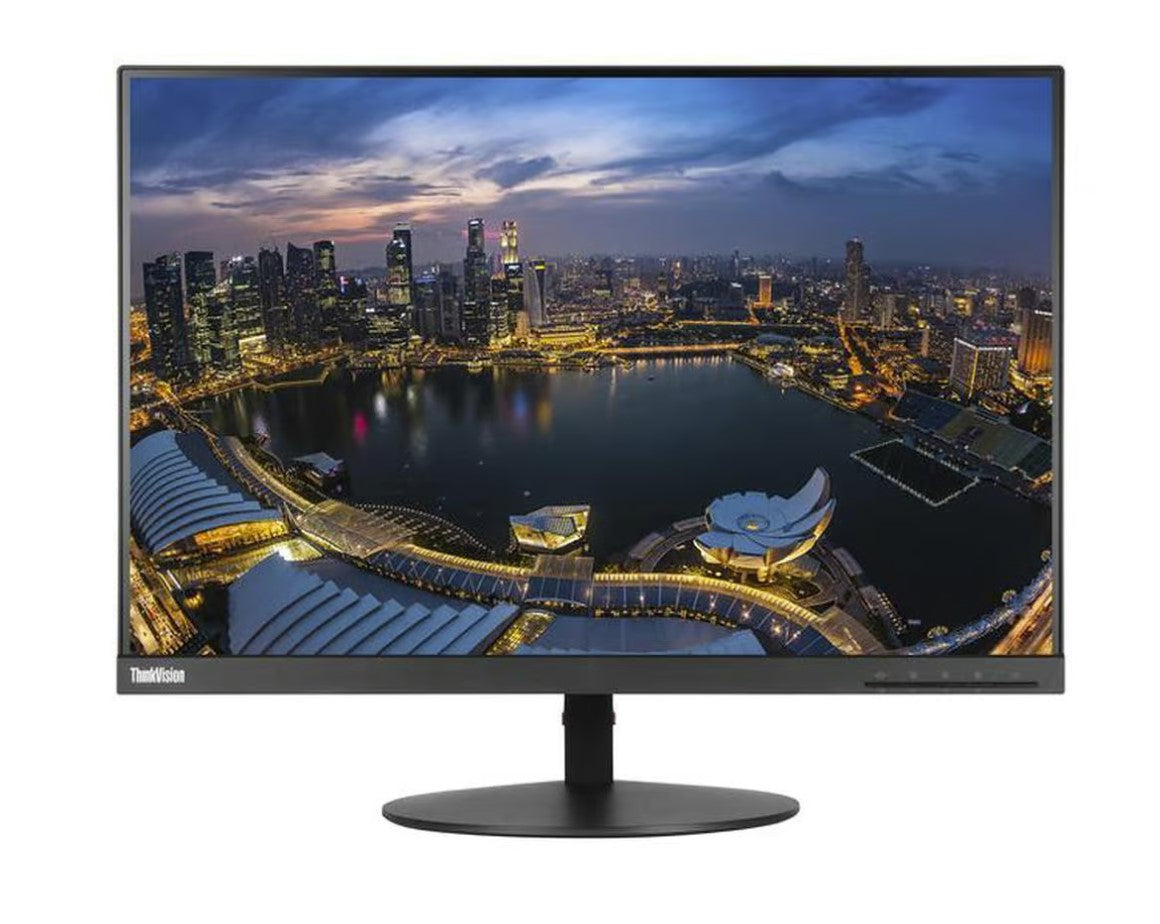

Lenovo ThinkVision T24d-10 24 inch WUXGA Monitor

Product Description

The glossy black ThinkVision T24d monitor with ergonomic stand provides a crystal clear, borderless IPS display for viewing vivid, accurate images from a wide angle. Its 24” screen and full-function stand lifts, tilts, pivots and swivels the display for ease of use almost anywhere.

Energy-conscious and TUV Eye-Comfort certified, the ThinkVision T24d ensures your health and environment are protected. Includes a Kensington lock slot and is available with optional sound bar support.

Product Features

Tech Specs

DISPLAY

Panel Size
      24 inches
Screen Dimensions
      518.4 x 324
      20.41 x 12.75
Panel Type
      In-Plane Switching
Backlight
      WLED
Aspect ratio
      16:10
Resolution
      1920 x 1200
Refresh Rate
      60Hz
Pixel Pitch
      0.27 x 0.27
Viewing angle (H x V @ CR 10:1)
      178 ° / 178 °
Response Time
      4 ms(Extreme)
      7 ms (Typical mode)
      15 ms(Off)
Display Colors (Typical)
      16.7 Million
Color Gamut (CIE 1931)
      99% sRGB
Dynamic Contrast Ratio
      3M:1
Contrast Ratio (Typical)
      1000:1
Maximum Brightness (Typical)
      300 cd/m²

SIGNAL INPUT

Video Input Signals
      VGA + DisplayPort 1.2 + HDMI 1.4
Video Cables Supplied
      VGA + DisplayPort + HDMI
Video Cable Length
      1.8 m
USB Hub
      USB 3.0
USB Cable Supplied
      Yes
Audio-Out
      Yes (3.5 mm)

POWER CONSUMPTION

Typical
      22 W
Maximum
      64 W
Sleep-Mode
      <0.3 W
Switch Off-Mode
      <0.3 W
Power Supply
      Internal
Power Voltage
      100 VAC – 240 VAC
Voltage Dynamic Frequency
      50 Hz – 60 Hz

SIGNAL INTERFACE / PERFORMANCE

Horizontal Frequency
      30 kHz - 83 KHz
Vertical Frequency
      50 Hz - 75 Hz
Native Resolution
      1920 x 1200
Maximum Pixel Clock Speed/ Bandwidth(VGA,HDMI,DisplayPort)
      205 MHz, 165 MHz, 165 MHz
Default Color Temperature
      6500 K
Preset Display Modes
      20
OSD Buttons
      5
OSD Languages
      English, French, German, Spanish, Italian, Japanese, Simplified Chinese, Russian

MECHANICAL

Tilt Angle (front/back)
      -5 ° / 30 °
Swivel Angle (left/right)
      +/-45 °
VESA Mount
      100 x 100
Lift (Max range)
      110 mm
Kensington Lock Slot
      Yes
Pivot
      +/-90°
Bezel Width (Side)
      2.0mm
Bezel Width
      Top (mm / inches) - 2 / 0.08
      Bottom (mm / inches) - 22.7 / 0.89
      Sides (mm / inches) - 2 / 0.08
Cable Management
      Yes

ENVIRONMENTAL

Temperature
      Operating : -0° - 0°
      Non-Operating : -20°C – 60°C
Humidity
      Operating : 10% – 80%
      Non-Operating : 5% – 95%
Altitude
      Operating : 0 m – 5000 m
      Non-Operating : 0 ft – 40,000 ft
Arsenic-Free Glass
      Yes
PVC-Free
      Yes
Mercury-Free
      Yes
PCC % of Plastic Resins
      >85%

DISPLAY DIMENSIONS (W x D x H)

 Size Packed(mm, inches)
      160 x 655 x 422
      6.3" x 25.79" x 16.61"
Size Unpacked with Stand (mm, inches)
      533.2 x 260.4 x 497.4
      20.99" x 10.25" x 19.58"
Size Monitor Head Only(mm, inches)
      533.2 x 42.3 x 355.1
      20.99" x 1.67" x 13.98"

DISTANCE FROM TABLE TO PANEL

Lowest Pixel at Bottom of Screen (mm / inches)
      56 / 2.2"
Highest Pixel at Top of Screen (mm / inches)
      490 / 19.29"
Stand Base Footprint Area
      250 x 250 mm
      9.84" x 9.84"

WEIGHT

Packed
      Starting at 19.18 lbs (8.7 kg)
Unpacked
      Starting at 12.41 lbs (5.63 kg)
Monitor Head Only
      Starting at 8.77 lbs (3.98 kg)

COMPLIANCE

EPEAT
      Silver
ENERGY STAR Rating
      8.0
ULE
      Gold
TCO
      TCO Display 7.0 / TCO Edge 2.0
RoHS (EU 2002/95/EC)
      Yes
China Energy Efficiency Standard
      Tier 2
Windows Certification
      Windows 7 / Windows 10
